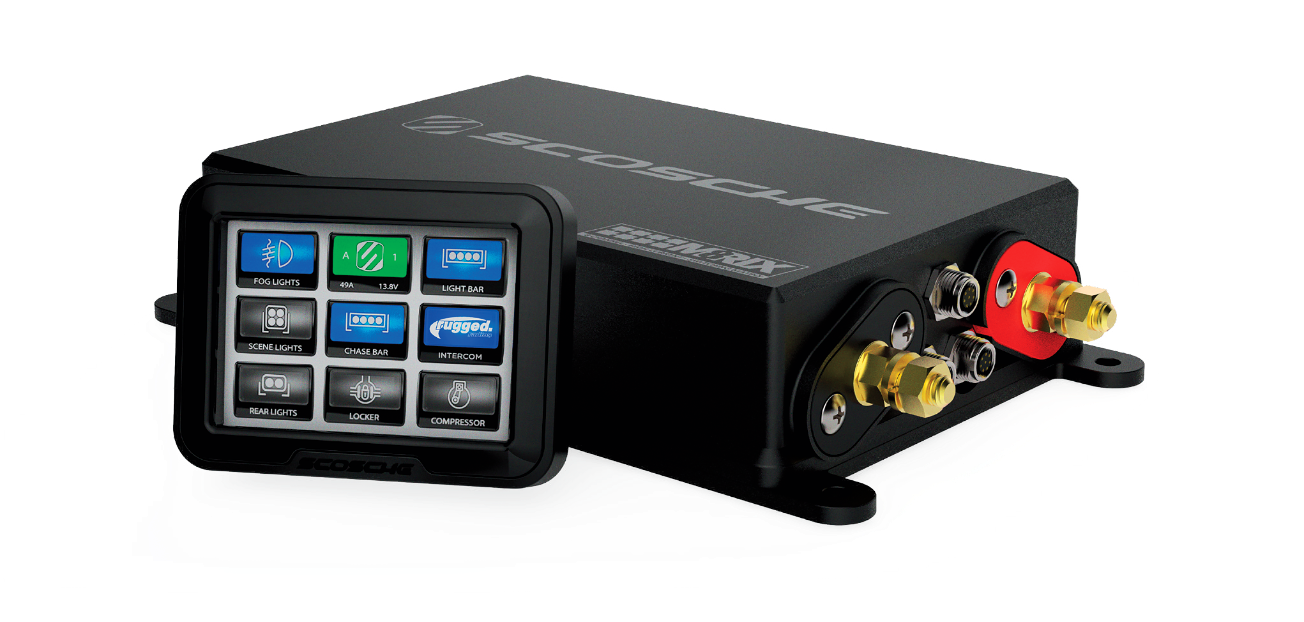

POWER MANAGEMENT SYSTEM WITH TOUCHSCREEN CONTROL PANEL
You’ve added some cool and convenient accessories to your ride but found that controlling them all is not so convenient. M8RIX™ from Scosche provides a simple solution, delivering up to 130 amps from its IPX7-rated waterproof solid-state power module to (up to) eight different accessories. M8RIX makes wiring those accessories clean and simple, and you can even daisy-chain up to three units to control up to 24 channels.
The compact control interface is a customizable and splashproof touch screen that mounts easily to your dash, completely eliminating the need for multiple switches. You can program each channel for latched, momentary, strobe and timed output, and status indicators will alert you of any faulty channels. Install M8RIX and enjoy your vehicle or boat, with none of the headaches.
Shop Now
- 3.5” Touchscreen (3.82” L x 2.87” W x 1.18” H)
- 7 selectable on screen button colors (Red, Orange, Yellow, Green, • Blue, Teal, Pink)
- 16 Selectable screen backgrounds
- 57 Selectable icon options
- Illumination input with dimming
- Includes two mounting options
- Other mounting options available: AMPS pattern, ¼ – 20”, Scosche MagicMount™, flush mount
Touchscreen Control Panel Specs:
- 8 Outputs: 2 rated at 30A each, 2 rated 15A each and 4 at 10A each
- MOSFET outputs
- 130A maximum rating
- Rated IPX7 – Waterproof, mount just about anywhere design
- Heavy-duty, Aluminum construction
- Under hood rated for 105° to -40°C
- 10” L x 5.8”W x 2”H (excluding connectors)
Power Module Specs:
Key Features
-
130A
Power Distribution Module with Touchscreen Control Panel
-
8
Programmable Channels
-
3.5″
3.5″ Touchscreen (3.82” L x 2.87” W x 1.18” H)
-
IPX7
Power module Rated IPX7 – Waterproof
-
0-100
Lighting outputs can be dimmed from 100 to 0%
-
2
Can be used with up to two control panels, control outputs from two different locations on your vehicle
-
24
Daisy-chain up to three power modules for control of up to 24 outputs, from any screen
-
7
Selectable on screen button colors (Red, Orange, Yellow, Green, Blue, Teal, Pink)
-
2x 30A
2x 30A, 2x 15A & 4x 10A Circuits (M8RIX will drive ALL channels full active at the same time)
-
16
Selectable Screen Backgrounds
-
57
Selectable Icon Options
-
1-24
1 Second - 24 Hour Programmable Timer
