M8RIX™ provides a streamlined solution that allows you to control up to eight different accessories on your vehicle, tractor or boat, from a dashboard-mounted touchscreen control panel.
• The 130A power distribution module is rated IPX7 – waterproof, and can be mounted almost anywhere on any vehicle, including cars, boats, UTVs and more.
• M8RIX automatically powers up when your vehicle starts and onscreen status indicators alert you to: overcurrent, open circuit, short circuit, thermal overload, or low voltage.
• The compact, programmable LCD touchscreen mounts to your vehicle’s dash and has eight channels. It can be programmed for “Groups” – to allow multiple channels to be turned on, or off, at once, or by time, as well as the option to create “Channel Dependencies”.
• Output wires include both power and ground for each channel and can be combined for twice the output.
• M8RIX can be used with two control panels to control outputs from two different locations on your vehicle. You can also daisy-chain up to three power modules, for control of up to 24 outputs from any touchscreen.
M8RIX™ Power Management System with Touchscreen Control
M8RIX™
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.govDescription
M8RIX™ provides a streamlined solution that allows you to control up to eight different accessories on your vehicle, tractor or boat, from a dashboard-mounted touchscreen control panel.
• The 130A power distribution module is rated IPX7 – waterproof, and can be mounted almost anywhere on any vehicle, including cars, boats, UTVs and more.
• M8RIX automatically powers up when your vehicle starts and onscreen status indicators alert you to: overcurrent, open circuit, short circuit, thermal overload, or low voltage.
• The compact, programmable LCD touchscreen mounts to your vehicle’s dash and has eight channels. It can be programmed for “Groups” – to allow multiple channels to be turned on, or off, at once, or by time, as well as the option to create “Channel Dependencies”.
• Output wires include both power and ground for each channel and can be combined for twice the output.
• M8RIX can be used with two control panels to control outputs from two different locations on your vehicle. You can also daisy-chain up to three power modules, for control of up to 24 outputs from any touchscreen.
Specifications
Power Module Specs:
• 8 Outputs: 2 rated at 30A each, 2 rated 15A each and 4 at 10A each
• MOSFET outputs
• 130A maximum rating
• Rated IPX7 – Waterproof, mount just about anywhere design
• Heavy-duty, Aluminum construction
• Under hood rated for 105° to -40°C
• 10" L x 5.8"W x 2"H (excluding connectors)
Touchscreen Control Panel Specs:
• 3.5" Touchscreen (3.82" L x 2.87" W x 1.18" H)
• 7 selectable on screen button colors (Red, Orange, Yellow, Green, Blue, Teal, Pink)
• 16 Selectable screen backgrounds
• 57 Selectable icon options
• Illumination input with dimming
• Includes two mounting options
• Other mounting options available: AMPS pattern, ¼ – 20", Scosche MagicMount™, flush mount
Compatibility
- 130A Power Distribution Module with Touchscreen Control Panel
- 8 programmable channels
- Power module Rated IPX7 – Waterproof
Splash-proof control panel offers multiple mounting options - 2 - 30A circuits, 2 - 15A circuits and 4 - 10A circuits (M8RIX will drive ALL channels full active at the same time)
- Combine two circuits for a twice the output
- Output wires include both Power and Ground for each channel
- The M8RIX system can be used with up to two control panels in order to control outputs from two different locations on your vehicle
- Daisy-chain up to three power modules for control of up to 24 outputs, from any screen
- Switches can be programmed for:
- Latched (On/Off) with optional Flash Override
- Momentary
- Strobe with optional SOS mode
- Timed (On/Off) 1s - 24hr Programmable Timer - Lighting outputs can be dimmed from 100 to 0%
- Create Groups - multiple channels can be turned on or off at the same time
- Create Channel Dependencies, channel behavior can be dictated by dependency to another channel.
- Automatic power-up upon vehicle start up
- On screen status indicators for Overcurrent, Open Circuit, Short Circuit, Thermal Overload, and Low Voltage
M8RIX™
Power Management System with Touchscreen Control Panel

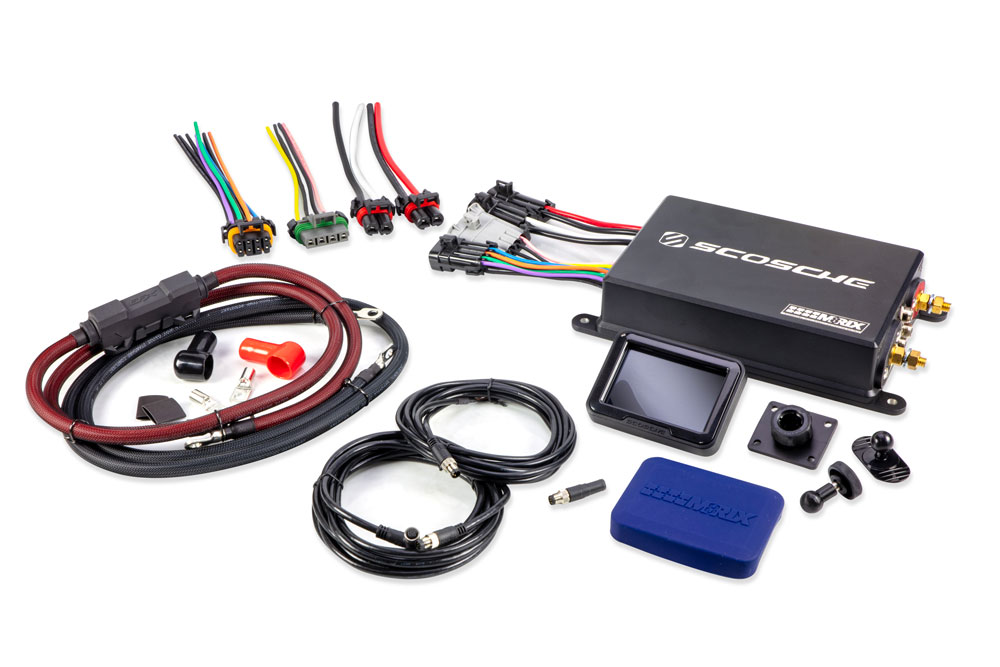

What's in the Box
- 130A Power Distribution Module
- 3.5” Touchscreen (3.82" L x 2.87" W x 1.18" H)
- 4ft EFX high current 4 gauge OFC power cable with pre-attached weatherproof mini ANL fuse holder, ring terminals and nylon wire loom
- 4ft EFX high current 4 gauge OFC ground cable with pre-attached ring terminals and nylon wire loom
- 10’ Data cable between control panel and power module
- 10’ Ignition and Illumination cable
- Color coded OFC 10 gauge and 14 gauge output wires
Additional ring terminals and heat shrink for custom wire length applications
