Inner Workings of Charging Pads: Understanding Basics

In today's fast-paced world, the need for convenient and efficient charging solutions for our electronic devices has become essential. Charging pads have emerged as a popular choice due to their ease of use and elimination of the hassle of tangled wires. But have you ever wondered how these charging pads work?

In this article, we will delve into the inner workings of charging pads, shedding light on the science behind them, the components that make them function, and the charging process itself. So, let's begin our journey of understanding the basics of charging pads.

One of the key concepts underlying charging pads is inductive charging. Inductive charging is the process of transferring electrical energy from the charging pad to the device without the need for a physical connection. It relies on the principle of electromagnetic fields. When an electric current flows through a wire, it generates a magnetic field around it. This magnetic field can induce an electric current in another wire placed nearby, without any direct contact between the two. This phenomenon forms the basis for the wireless charging technology used in charging pads.

In inductive charging, the charging pad contains a coil that generates an alternating electromagnetic field when an electric current passes through it. This alternating electromagnetic field is picked up by a receiver coil in the device, which converts it back into an electric current to charge the device's battery. The use of alternating current in the charging pad allows for efficient power transfer and reduces energy losses.

But how exactly does the receiver coil in the device convert the electromagnetic field back into an electric current? The receiver coil is made up of tightly wound wire loops, which create a magnetic field of their own. When the alternating electromagnetic field from the charging pad interacts with the magnetic field of the receiver coil, it induces a voltage across the coil. This voltage, in turn, generates an electric current that can be used to charge the device's battery.

It's important to note that inductive charging requires proximity between the charging pad and the device. The distance between the two coils affects the efficiency of power transfer. If the coils are too far apart, the electromagnetic field weakens, resulting in reduced charging efficiency. Therefore, it's crucial to properly align the device with the charging pad to ensure optimal power transfer.

Electromagnetic fields play a crucial role in the charging process. When the device is placed on the charging pad, the receiver coil in the device aligns with the electromagnetic field generated by the charging pad. This alignment ensures that the maximum amount of energy is transferred between the two coils, enabling efficient charging. The strength and stability of the electromagnetic field are key factors in ensuring successful power transfer.

But how do charging pads maintain a stable electromagnetic field? Charging pads are designed with special circuitry that constantly monitors and adjusts the electromagnetic field. This circuitry ensures that the field remains stable, even when there are external factors that could potentially disrupt it, such as nearby metal objects or other electronic devices. By maintaining a stable electromagnetic field, charging pads can consistently deliver power to the device for efficient charging.

Additionally, electromagnetic fields are not only used for charging devices, but they also have various applications in other industries. For example, electromagnetic fields are used in wireless communication systems, such as Wi-Fi and Bluetooth. These fields enable the transmission of data wirelessly, allowing us to connect to the internet, stream music, and communicate with others without the need for physical cables.

Furthermore, electromagnetic fields have important implications in the field of medicine. Magnetic resonance imaging (MRI) machines, for instance, utilize strong magnetic fields and radio waves to create detailed images of the body's internal structures. This non-invasive imaging technique has revolutionized medical diagnostics, allowing doctors to diagnose and treat various conditions with precision.

In conclusion, charging pads rely on the concept of inductive charging, which harnesses the power of electromagnetic fields to transfer energy wirelessly. The alternating electromagnetic field generated by the charging pad is picked up by the receiver coil in the device, converting it back into an electric current to charge the device's battery. The alignment and stability of the electromagnetic field are crucial for efficient power transfer. Understanding the science behind charging pads not only helps us appreciate the technology but also sheds light on the broader applications of electromagnetic fields in various industries.

A charging pad consists of various components that work together to enable wireless charging. Let's take a closer look at these components:

The charging base serves as the foundation of the charging pad. It houses the electronics and circuits responsible for generating the alternating electromagnetic field. The charging base is designed to be stable and provide a secure platform for the device to rest on during charging.

Within the charging base, there are intricate circuits that convert the electrical energy from the power source into an alternating electromagnetic field. These circuits are carefully designed to ensure efficiency and safety during the charging process. The charging base also incorporates heat dissipation mechanisms to prevent overheating and protect the device being charged.

Furthermore, the charging base often includes LED indicators to provide visual feedback on the charging status. These indicators can display different colors or patterns to indicate whether the device is charging, fully charged, or if there is an error in the charging process.

The power source is what supplies the energy needed to create the electromagnetic field. It can be a connection to a wall outlet or a built-in battery. The power source ensures a constant and reliable flow of electricity to the charging pad.

If the charging pad is connected to a wall outlet, it typically includes a power adapter that converts the AC (alternating current) power from the outlet into the DC (direct current) power required by the charging pad. This adapter may also incorporate safety features such as surge protection and overcurrent protection to safeguard both the charging pad and the device being charged.

On the other hand, if the charging pad has a built-in battery, it allows for portable and convenient charging. The battery can be recharged when the charging pad is connected to a power source, and then it can provide power to the charging pad without the need for a direct connection to an outlet. This feature is particularly useful for travel or situations where access to a power outlet is limited.

The receiver, also known as the receiver coil, is a crucial component of the charging pad. It is embedded in the device and is responsible for picking up the electromagnetic field generated by the charging pad. The receiver coil converts the electromagnetic energy back into electrical energy, which is then used to charge the device's battery.

The receiver coil is typically made of a conductive material, such as copper, that is wound into a specific shape to maximize its efficiency in capturing electromagnetic energy. The size and positioning of the receiver coil may vary depending on the device being charged and the design of the charging pad.

Inside the device, the receiver coil is connected to the battery and charging circuitry. When the device is placed on the charging pad, the receiver coil detects the alternating electromagnetic field and induces an electrical current in its coil. This current is then directed to the battery, where it is stored as electrical energy to power the device.

It is worth noting that the receiver coil must be compatible with the charging pad's electromagnetic field frequency and power requirements. Different charging pads may operate at different frequencies, and the receiver coil must be designed accordingly to ensure efficient energy transfer.

In conclusion, a charging pad is not just a simple device. It is a complex system that combines the charging base, power source, and receiver to provide wireless charging capabilities. Each component plays a crucial role in ensuring efficient and safe charging for various devices. As technology continues to advance, we can expect further improvements in wireless charging technology, making it even more convenient and accessible in our daily lives.

Now that we understand the science behind charging pads and the components that make them function, let's dive into the charging process itself. The charging process can be broken down into three key stages:

When the device is placed on the charging pad, the electromagnetic field generated by the charging base induces an electrical current in the receiver coil of the device. This initial power transfer establishes a connection between the charging pad and the device, signaling the start of the charging process.

Once the initial power transfer is established, the charging pad and the device communicate with each other to ensure optimal charging conditions. This communication allows the charging pad to adjust the power output according to the device's requirements and maximize the efficiency of the charging process. Advanced charging pads can even exchange information with the device, such as battery status and temperature, to further optimize the charging experience.

The charging cycle refers to the process of continuously transferring power from the charging pad to the device until the device's battery reaches its full capacity. The charging pad maintains a constant electromagnetic field, which the receiver coil in the device uses to convert into electrical energy. This energy is then used to charge the device's battery. The charging cycle continues until the device reaches its desired battery level or is removed from the charging pad.

Charging pads come in different forms to cater to various needs. Let's explore two common types:

Single-device charging pads, as the name suggests, are designed to charge a single device at a time. They are compact and portable, making them a convenient choice for individual users. Single-device charging pads are often used for smartphones, smartwatches, and other small devices.

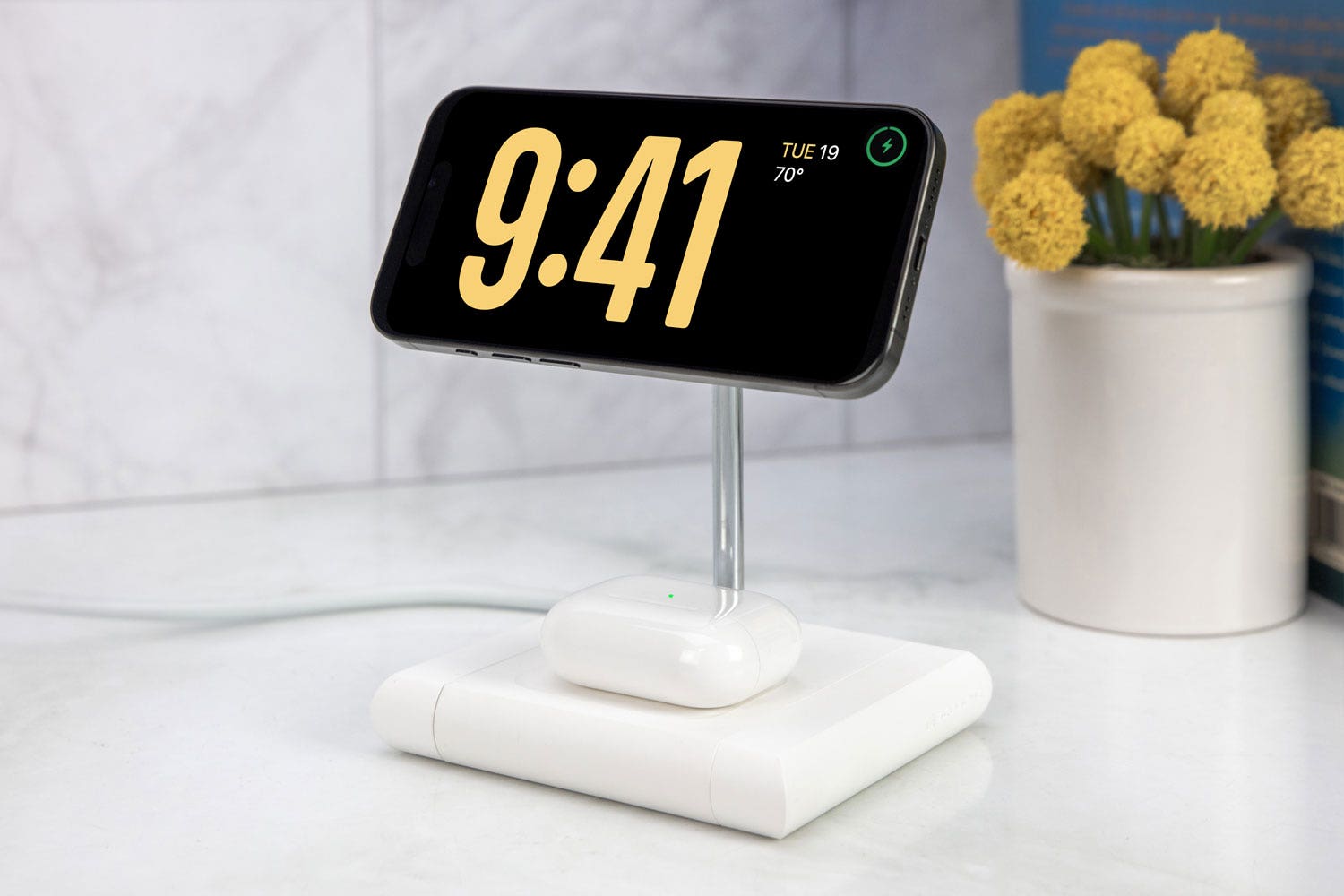

Multi-device charging pads are designed to charge multiple devices simultaneously. These charging pads feature multiple charging coils, allowing users to charge multiple devices at once. They are ideal for households or offices where multiple devices need to be charged at the same time.

Ensuring the safety of both the device and the user is of utmost importance in charging pads. Here are two key safety measures implemented in charging pads:

Overcharging protection is a feature built into charging pads to prevent the device from being charged beyond its safe limits. It monitors the charging process and automatically stops the power transfer when the device's battery reaches its full capacity. This prevents overcharging, which can lead to battery damage or even safety hazards.

Foreign object detection is another safety feature present in charging pads. It detects the presence of foreign objects, such as metal objects or magnetic cards, on the charging pad. If a foreign object is detected, the charging pad will not initiate the charging process, ensuring the safety of the device and preventing potential damage caused by foreign objects coming in contact with the charging pad.

In conclusion, charging pads have revolutionized the way we charge our electronic devices. Understanding the basics of their inner workings gives us a deeper appreciation for the technology behind them. From the science of inductive charging to the components that make them function, and the charging process itself, charging pads offer a convenient and efficient solution for our charging needs. With different types available and safety measures in place, charging pads continue to evolve to meet the demands of our modern lives. So, the next time you place your device on a charging pad, you can appreciate the intricate science and technology at work, simplifying and enhancing our charging experience.
